Customized Chip On Glass 7 Segment Positive LCD Display Graphic Matrix

Name: Customized Chip On Glass 7 Segment Positive LCD Display Graphic Matrix
Brand: FANGSHENG
Price: 2.45 USD

Buy cheap Customized Chip On Glass 7 Segment Positive LCD Display Graphic Matrix product

Place of Origin : Guangdong, China

Brand Name : FANGSHENG

Packaging Details : 100pcs /BOX

Supply Ability : 1000000 Piece/Pieces per Month

Price : $2.45/pieces 1-1999 pieces

Type : COG

Display Size : Customized

Supplier Type : OEM and ODM

LCD Type : FSTN or STN

LCD Color : Gray

Viewing Angle : 12 O'clock

Display mode : Positive

polarizer mode : Transmissive

Driving method : 1/64 DUTY,1/9 BIAS

Driving Voltage : DC 5.0V

Contact Now

Customized Chip On Glass LCD Display 7 Segment Positive Lcd Display Graphic Matrix Lcd COG Module

specification

Item	Contents	Description	Unit
1	Lcd Dimension	Customized or 29341.3T	MM
2	Operation Voltage	3.3V
3	Drive Controller	ST7567
4	Viewing angle	12	O'clock
5	Operating Temperature	-20~70C
6	Storage Temperature	-30~80C
7	Lcd Drive Method	1/64 Duty, 1/9 Bias
8	Connector type	COG+FPC

Customized Chip On Glass 7 Segment Positive LCD Display Graphic Matrix

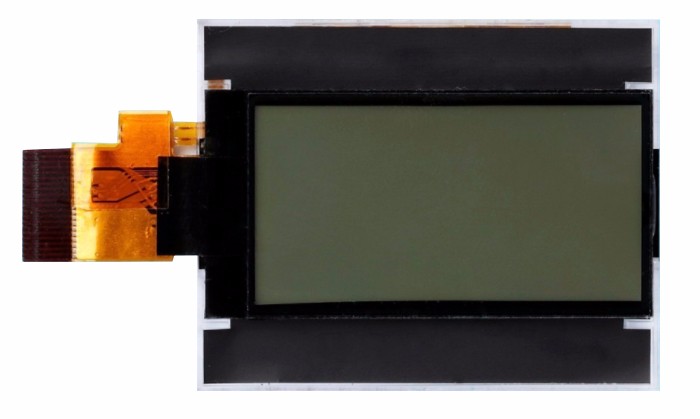

What is Chip-On-Glass (COG)?

Chip-On-Glass is the mounting of the LCD IC directly onto the ledge of the LCD glass itself.
The IC is bonded with an anisotropic conductive film (ACF), which facilitates the mechanical
adhesion, as well as the conduction from the IC to the glass.

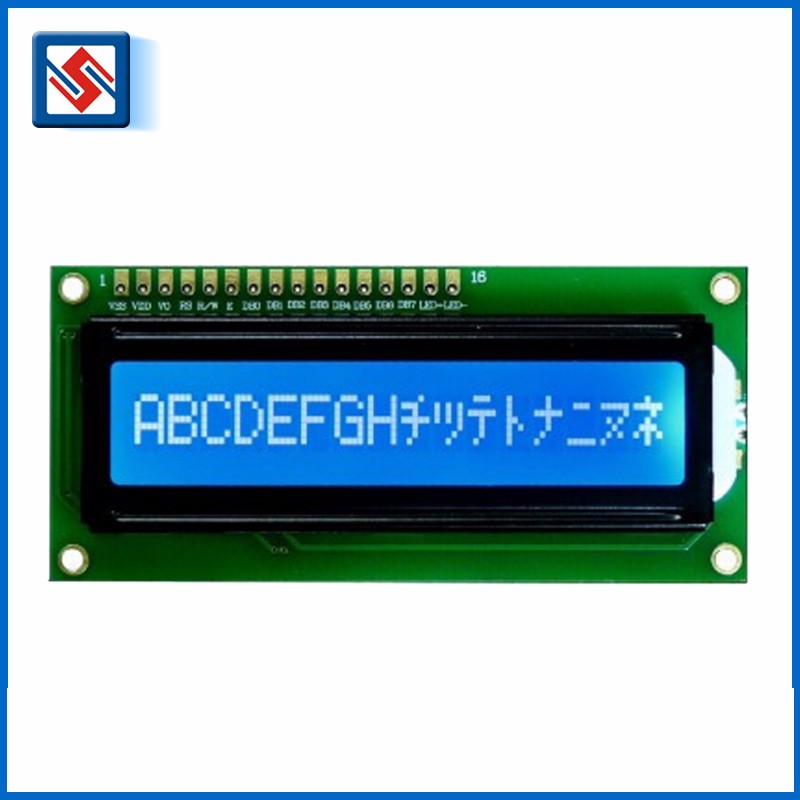

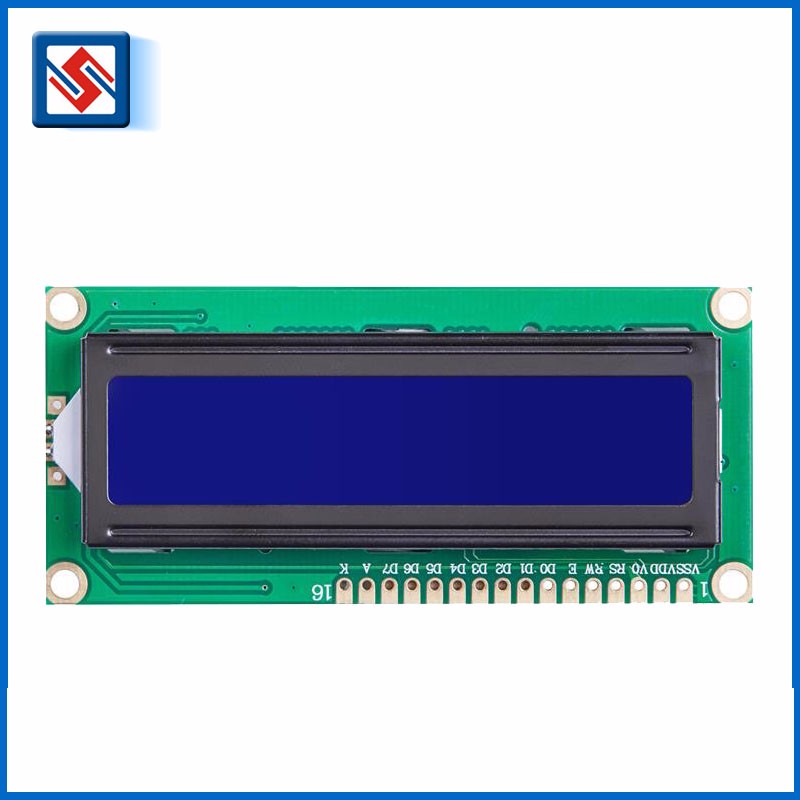

1. COG Character LCD Formats of 8×1, 12×1, 14×1, 16×2, 20×2 dot matrix character.

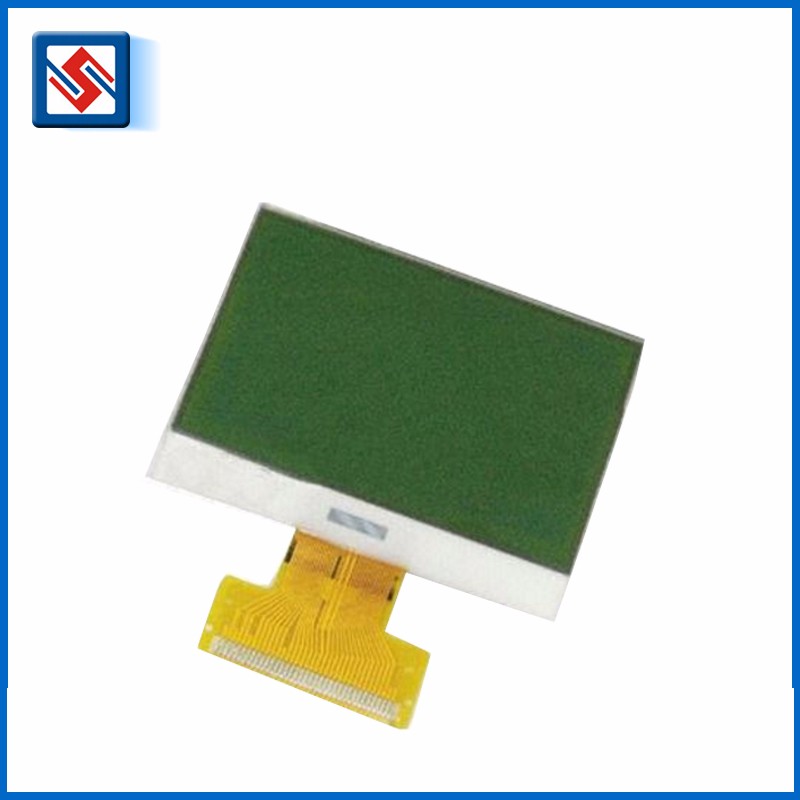

2. COG Graphic LCD Formats of 64×64, 128×32, 128×64, 128×65, 128×128, 160×100, 192×140 dot matrix character.
3. LCD panel options of TN, STN, FSTN and FFSTN.
4. The polarizer can be positive or negative mode.
5. LED backlight color, yellow-green, red, blue, white, RGB LEDs and no backlight option.

Production Process

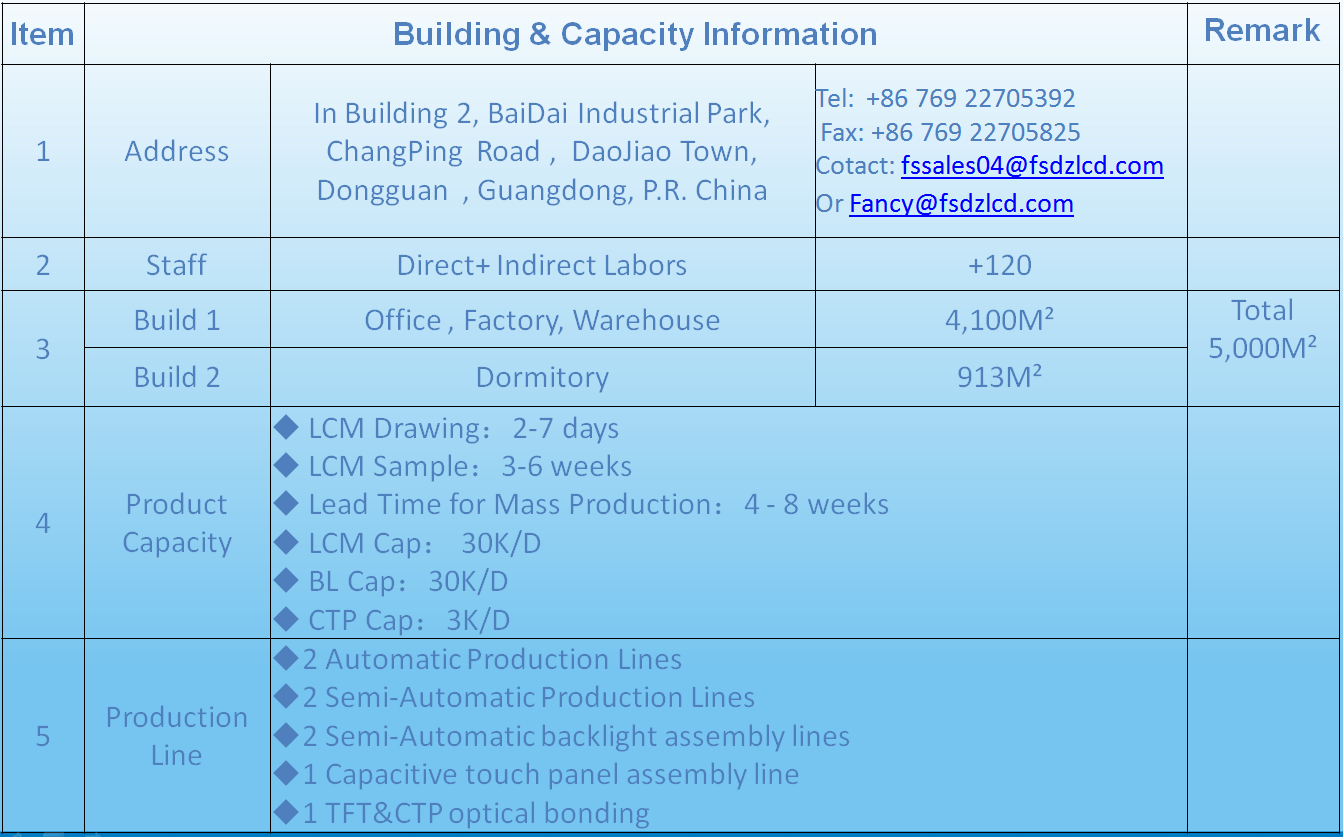

Company Profile
